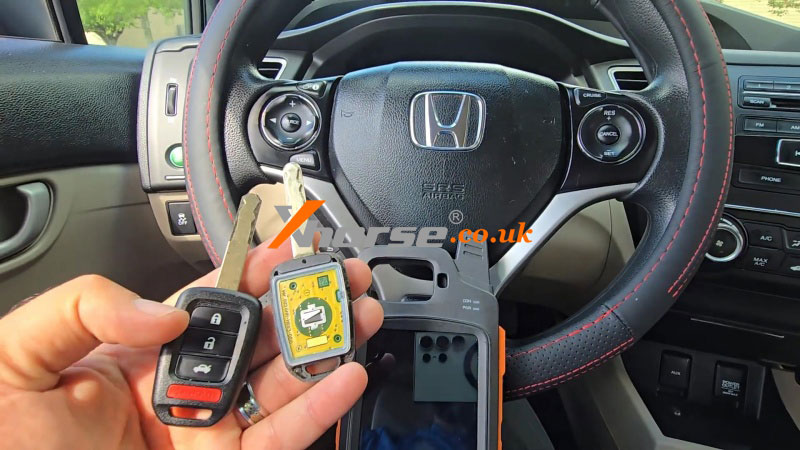

Hi guys, today I’m gonna show how to add a new key for 2014-2019 Honda Civic with Xhorse VVDI Key Tool Max Pro/Key Tool Max by OBD.
So first, we need to connect the Key Tool Max Pro to the OBD.
Turn the ignition on.

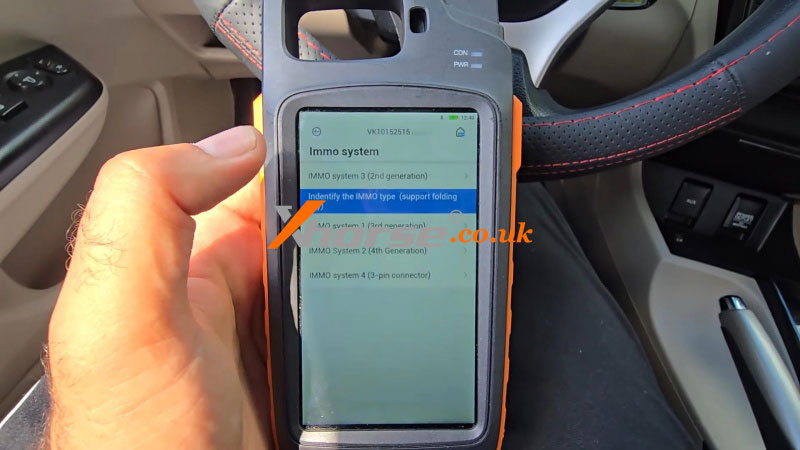

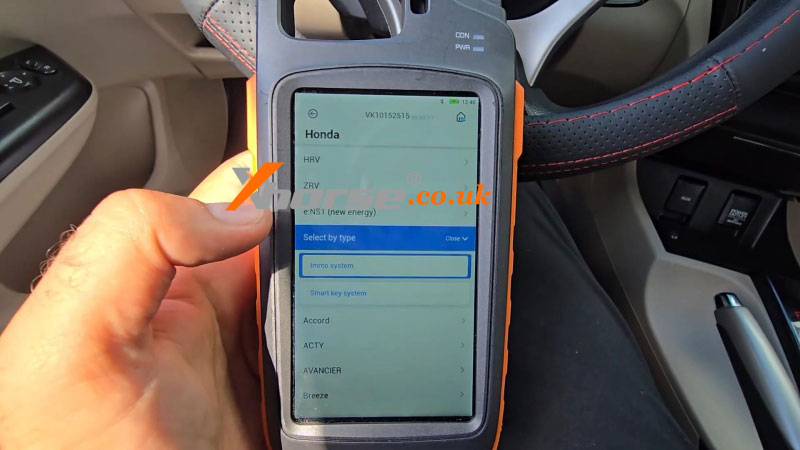

Immo programming >> Honda >> Select by type >> Immo system >> Indentify the IMMO type(support folding key) >> Immo programming >> Immo type identification

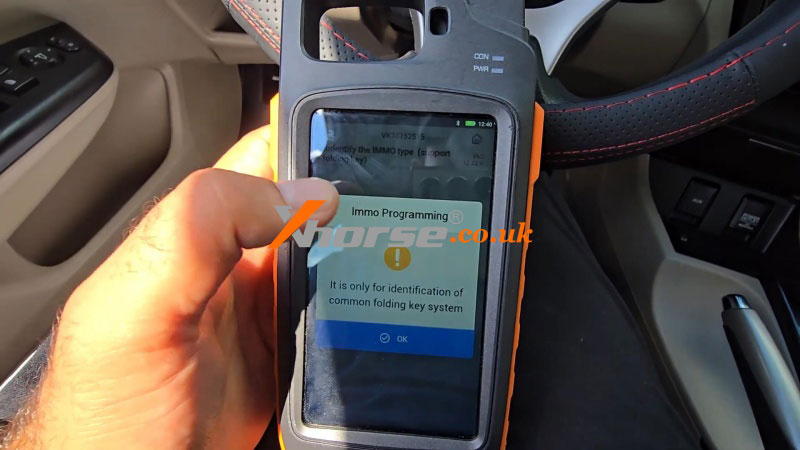

It is only for the identification of the common folding key system.
Press OK.
Turn the ignition off.
Switch ignition on.

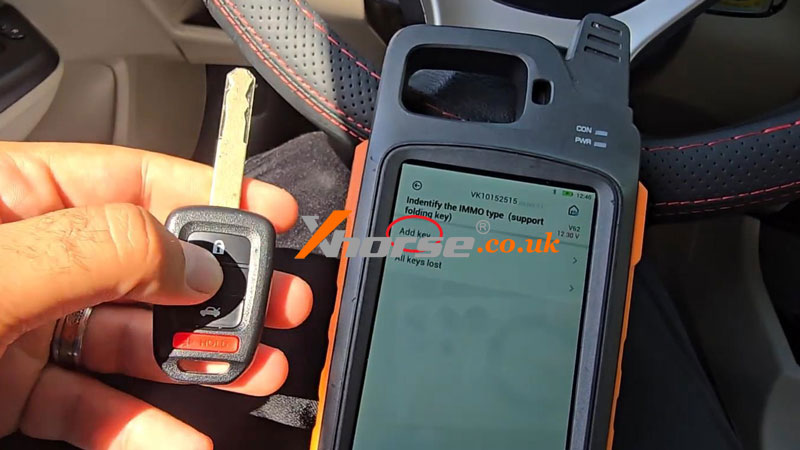

Press “Add key” on Key Tool Max Pro.

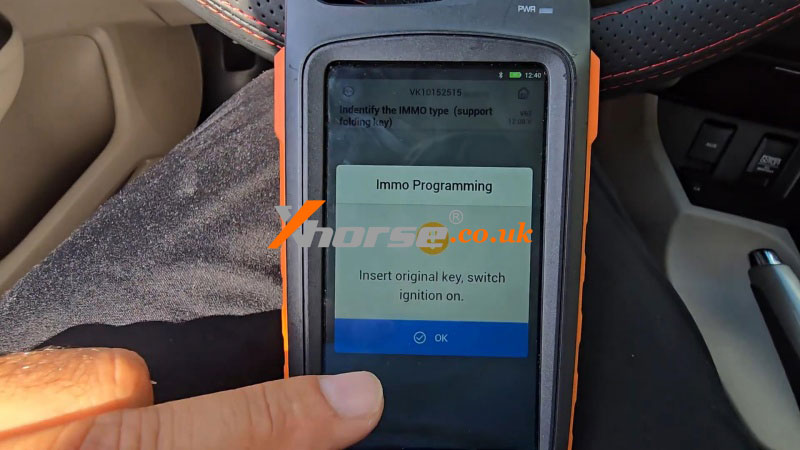

Insert the original key, and switch the ignition on.
Turn the ignition off.
Turn on the ignition switch.
If there is no response within 10s, please turn off/on the ignition switch again.
Turn on the ignition switch.
If there is no response within 10s, please turn off/on the ignition switch again.
Turn the ignition off.

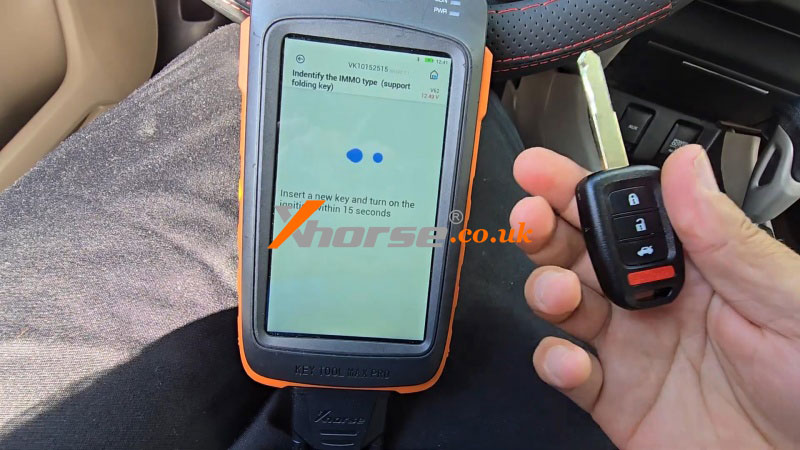

Insert a new key and turn on the ignition within 15s.
Turn the ignition off.
Switch ignition on.
Turn the ignition off.
Switch ignition on.

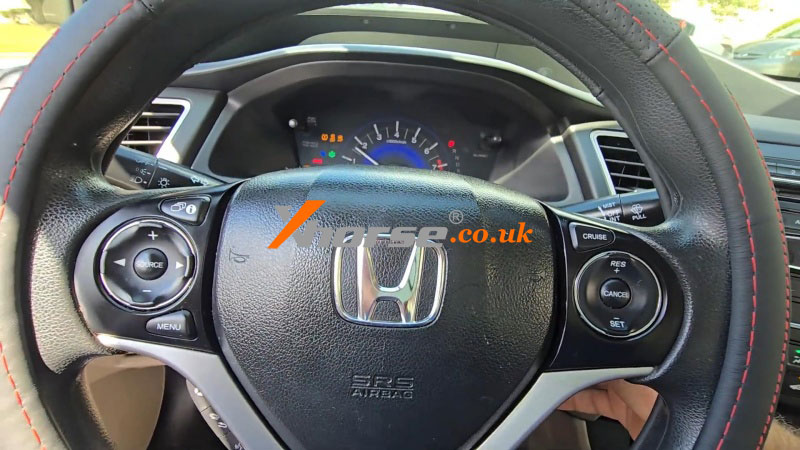

Is the immo indicator light off? Yes
Switch ignition on.
Program completed.
Check the control, it’s working. Start the car OK.
The new key has been successfully programmed.
